    0.8-8mm Thickness 65mn Grade Spring Steel Strips used for cutting saw

    Ask Lasest Price
    Brand Name : OEM/ODM
    Model Number : 65MN
    Certification : ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 3000 tons per month
    Delivery Time : within 15 days
    • Product Details
    • Company Profile

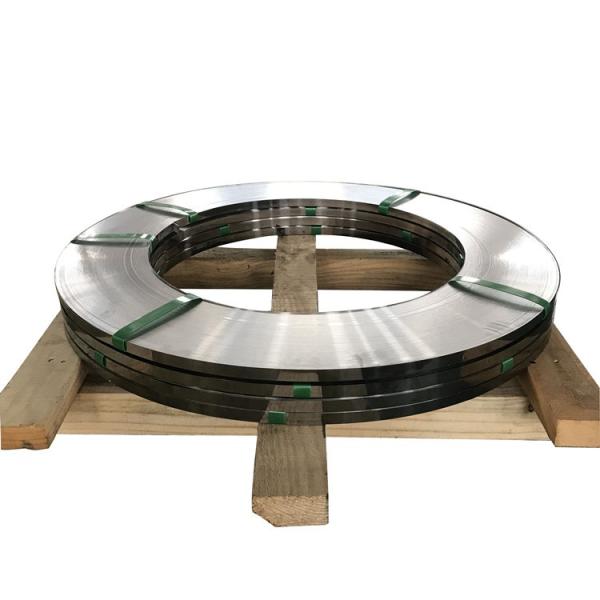

    0.8-8mm Thickness 65mn Grade Spring Steel Strips used for cutting saw

    65mn 1066 Spring Steel Coil , Spring Steel Strip Tempered Treated 0.8-8mm Thick
    ProductSpring heat treated strip steel
    Thickness0.08mm-5.0mm
    Width6.5mm-510mm
    Lengthas per your requirement
    MaterialS35C, S45C, S50C, S60C, S70C, S75C, 40Mn, 42Mn, 65Mn, CK67, SK4, SK5, SK85, SK7, T10A, SK551, 75Cr1, 50CrVa, 51CrV4, 30CrMo, 62Si2Mn, 60Si2Mn, Q235B, Q345B and etc
    TechnologyCold rolled
    Payment termsT/T, 30% as deposit and 70% before shipment.
    Delivery timeWithin 20-30 days after deposit
    PackageIn bundle/coil, seaworthy package or as requested
    ApplicationBuilding hardware tools;Leaf Spring,saw blade ,clutch,shrapnel,automanufacture,spring wire

    GRADES COMPARISON FOR SPRING STEEL
    CHINA GB/TUSA ASTMJAPAN JISGERMANY DINFRANCE NFBIRTAIN BSISOKOREA KSTAIWAN CNS
    351035S35CCK35XC35060A35C35
    451045S45CCK45XC45060A47C45
    501050S50CCK50XC50080M50C50
    601060S60CCK60XC60060A62C60
    701070S70CCK70XS70S70
    751075S75CCK75XC75C75
    T10W1-9SK4
    T9W1-8SK5
    SK85---SK85
    SKS51L6SKS51
    40Mn1043SWRH42B40Mn440M5080A40SL,SM
    42Mn
    65Mn1566S60C-CSPCK67080A67C60E4
    55Si2Mn9255SUP 6 SUP755Si755Si7251H6055SiCr7
    60Si2Mn9260SUP 6 SUP765Si765Si7251H6061SiCr7SUP3SUP6
    62Si2Mn
    75Cr175Cr175Cr175Cr1
    51CrV45160SUP9A51CrV451CrV4SPS5ASUP9A
    30CrMoG41300SUP1335CrMo4SPS9SUP13
    50CrVA6150SUP1051CrV451CrV4735A5151CrV4SPS6SUP10
    Mechanical Properties
    The mechanical properties of 65Mn Spring Steels are outlined in the following table.
    Tensile strength
    Conditions to yield strength
    Elongation
    Reduction of area
    Hardness (Hot Rolled)
    Hardness (Cold Drawn)
    σb (MPa):≥980
    σ0.2 (MPa):≥785
    δ 5 (%):≥8
    ψ (%):≥30
    ≤302HB;
    Applications
    65Mn steel, after heat treatment and cold drawing hardening, high strength, it has a certain toughness and plasticity; In the same surface hardening case, completely and the fatigue limit and alloy spring. But hardenability poor, mainly for the smaller size of the spring, such as regulating speed regulating spring, spring load, general machinery in the round, square spiral spring or pull wire for small mechanical spring.
    Regular size and Tolerance
    Steel round bar: Diameter Ø 2mm – 3000mm
    Steel plate: Thickness 2mm – 3000mm x Width 100mm – 3500mm
    Steel Hexagonal bar: Hex 5mm – 105mm
    Others 65Mn have not specified size, pls contact our experienced sales team.
    Processing
    Moreover, GB 65Mn Spring Steel round bar and flat sections can be cut to your required sizes. 65Mn Spring Steel ground bar can also be supplied by us, providing a high quality Spring Steel precision ground Spring Steel bar to your required tolerances. And GB 65Mn steel is also available as Ground Flat Stock / Gauge Plate, in standard and nonstandard sizes.
