    DX51D HDGI Prime Hot Rolled Steel Sheet In Coils Zero Spangle Gi Sheet Z40-Z275

    Ask Lasest Price
    Brand Name : OEM/ODM
    Model Number : SGCC, DX51D,Q195,Q235
    Certification : ISO
    Price : negotiable based on the quantity
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000 tons per month
    Delivery Time : within 10 days after received the advance
    • Product Details
    • Company Profile

    DX51D HDGI Prime Hot Rolled Steel Sheet In Coils Zero Spangle Gi Sheet Z40-Z275

    Galvanized spcc iron sheet coil dx51d z200 galvanized steel coil
    Hot Dipped Galvanized Steel Sheet in Coil (GI) is produced by passing the Full Hard sheet which has undergone the acid washing process and rolling process through the zinc pot, thereby applying zinc film to the surface.
    It has excellent corrosion resistance, paintability, and workability due to Zinc’s characteristic. Usually hot dipped galvanized steel sheet and galvanized steel coil process and specifications are basically the same.
    Galvanized Coils
    Thickness
    0.12-4.0mm
    Tolerance
    +/-0.02mm
    Width
    30-1500mm
    Zinc Coating
    30-275g/m2
    Package weight
    2 -6 ton per coil
    Surface
    Passivation,Fat liquoring,
    Stop-off lacquer
    Hardness
    HRB50-71(CQ Grade),
    HRB45-55(DQ Grade)
    Tensile Strength
    270-500(CQ Grade),
    270-420(DQ Grade)
    Yield Strength
    140-300 (DQ Grade)
    Elongation Percentage
    22 (CQ Grade thickness less 0.7mm),24 (DQ Grade thickness less 0.7mm)
    Spangle coating
    Big Spangle, small Spangle,Spangle-free
    Standard
    EN 10142,EN 10147,EN 10292,JIS G3302, ASTM A653/A653M, BQB 420
    Grade
    DX51D+Z,DX52D+Z,DX53D+Z,DX54D+Z,S220GD+Z,DX51D+Z/SGCC/A653/Automotive grade,etc
    Surface Treatment
    Passivation(C),Oiling(O),Lacquer sealing(L),Phosphating(P),Untreated(U)
    Surface Structure
    Normal spangle coating (NS),minimized spangle coating(MS),spangle-free(FS)

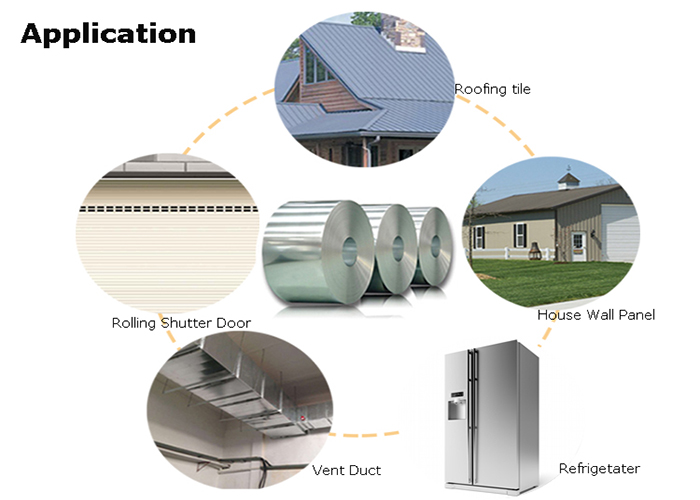

    Application
    Building , Corrugated sheet Roofing, electrical, Appliances, Automobile industry,
    Transport Packaging ,Machinery processing ,Interior decoration , Medical
    Packing
    Inside:Anti-rust paper,Plastic.
    Outside:Steel inner and outside guard board,Circle Iron guard board for both side,Outside iron guard board, 3 Radial Strapping and 3 Latitude Strapping.
    We can also pack according to your requirement.


    If you have any question, please feel free to contact us any time.
