Brand Name : | OEM/ODM |
Model Number : | Q235, Q345, ST37, Q195, Q215, A36, 45#, 16Mn, SPHC,SS400 |
Certification : | SGS, TUV, ISO, CE |
Price : | Price can be negotiated |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 5000 Tons Per Month |
Delivery Time : | 7-20 working days |

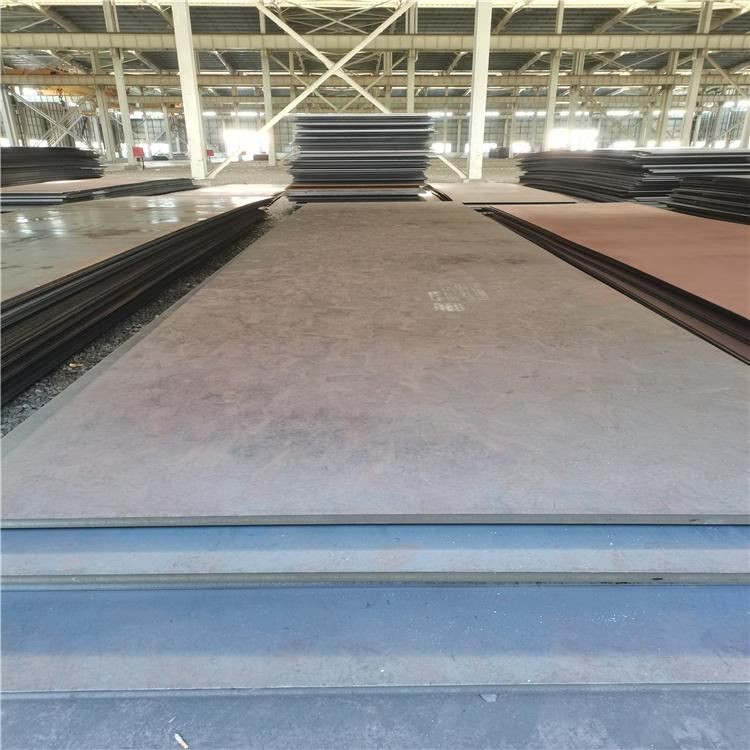

ASTM A32 Ccsa Ccsb Hot Rolled Ship Vessel Use Wear Resistant High
Strength Ship Plate Sheet
Steel plate A131 A32 for shipbuilding and platform.A32 shipbuilding steel plate is a high tensile strength steel.With its good toughness qualities, increased strength, strong corrosion resistance, processing properties, and welding capabilities, A32 shipbuilding steel is the Hull structural steel.
A131 A32 steel plate is commonly used in the major structural
construction, such as the bull and oil platform.
The Chemical is max composition of product analysis:
Grade | C % | Si % | Mn % | P % | S % |
A131 A32 | 0.180 | 0.10-0.35 | 0.700 | 0.035 | 0.035 |
The mechanical properties at ambient temperature for quenched and
tempered steel plate
Grade | Thickness(mm) | Min Yield (Mpa) | Tensile(MPa) | Elongation(%) | Min Impact Energy | |
A131 A32 | 8mm-50mm | Min 315Mpa | 440-590Mpa | 22% | 0 | 34J |
51mm-70mm | Min 315Mpa | 440-590Mpa | 22% | 0 | 38J | |
71mm-100mm | Min 315Mpa | 440-590Mpa | 22% | 0 | 46J | |
The min impact energy is longitudinal energy |
