Chemistry Typical
| Grade | Chemical Composition |
| USA | C Max | SI Max | Mn Max | P Max | S Max | Ni | Cr | N | Ti | N Max | Cu | Mo |
| AISI |
| 301 | 0.15 | 1 | 2 | 0.045 | 0.03 | 6.00-8.00 | 16.00-18.00 | | - | - | | - |
| 302 | 0.15 | 1 | 2 | 0.035 | 0.03 | 8.0-10.0 | 17.0-19.0 | - | - | - | - | - |
| 303 | 0.15 | 1 | 2 | 0.2 | ≥0.15 | 8.0-10.0 | 17.0-19.0 | - | - | - | - | ≤0.6% |
| 304 | 0.08 | 1 | 2 | 0.045 | 0.03 | 8.00-10.50 | 18.00-20.00 | | - | - | | - |
| 304L | 0.03 | 1 | 2 | 0.045 | 0.03 | 9.00-13.00 | 18.00-20.00 | | - | - | | - |
| 305 | 0.12 | 1 | 2 | 0.045 | 0.03 | 10.50-13.00 | 17.00-19.00 | | - | - | | - |
| 309S | 0.08 | 1 | 2 | 0.045 | 0.03 | 12.0-15.0 | 22.0-24.0 | - | - | - | - | - |
| 310 | 0.25 | 1.5 | 2 | 0.045 | 0.03 | 19.00-22.00 | 24.00-26.00 | - | - | - | - | - |
| 310S | 0.08 | 1.5 | 2 | 0.035 | 0.03 | 19.00-22.00 | 24.00-26.00 | - | - | - | - | - |
| 314 | 0.25 | 1.50-3.0 | 2 | 0.045 | 0.03 | 19.00-22.00 | 23.0-26.0 | - | - | - | - | - |
| 316 | 0.08 | 1 | 2 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 | - | - | - | - | 2.00-3.00 |
| 316L | 0.03 | 1 | 2 | 0.045 | 0.03 | 12.00-15.00 | 16.00-18.00 | - | - | - | - | 2.00-3.00 |
| 317 | 0.08 | 1 | 2 | 0.045 | 0.03 | 11.0-15.0 | 18.0-20.0 | ≤0.1 | - | - | - | - |
| 321 | 0.08 | 1 | 2 | 0.045 | 0.03 | 9.0-12.0 | 17.0-19.0 | - | - | - | - | |
Physical Properties
Density: 0.289 lbs/in3 8.00 g/cm3
Electrical Resistivity: ohm-cir-mil/ft: At 70 °F (21 °C): 469.0
Specific Heat: BTU/lb-°F (J/g-°C):
32 - 212 °F (0 - 100 °C): 0.12 (0.50)
Thermal Conductivity: BTU-in/hr-ft2-°F (W/m•K):
32 - 212 °F (0 - 100 °C): 112 (16.2)
Mean Coefficient of Thermal Expansion: µin/in-°F (µm/m-°C)
32 - 212 °F (0 - 100 °C): 8.78 (15.8)
32 - 599 °F (0 - 315 °C): 9.00 (16.2)
32 - 1000 °F (0 - 540 °C): 9.39 (16.9)
32 - 1200 °F (0 - 650 °C): 10.6 (19.1)
Modulus of Elasticity: ksi (MPa)
28 - 29 x 103 (193 - 200 x 103) in tension
Magnetic Permeability, H = 200: Annealed
Product Show
MOQ

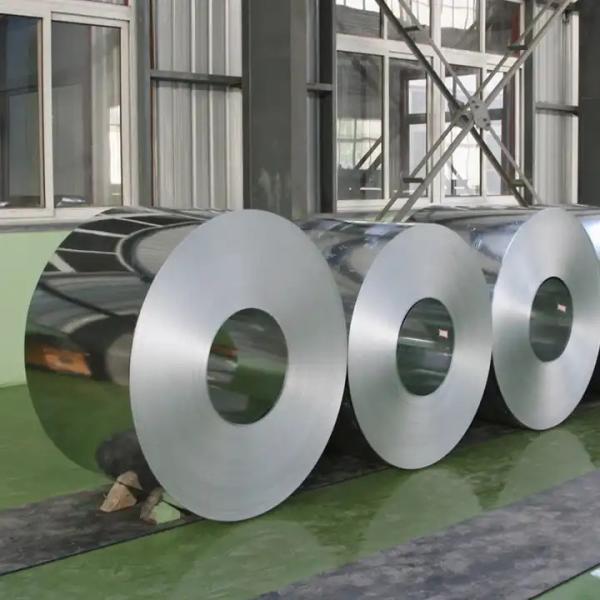

What are the edges of 310S stainless steel coils?
The look of an untrimmed edge following hot or cold rolling, annealing, or pickling is known as the mill edge. Usually, it left a 10 to 15 mm uneven pinhole line on the edge side.
Slit/slitting edge refers to the uneven pinhole line that our slitting machine will trim.
What is the typical 310S stainless steel coil marine packaging?
Customary maritime export packaging:
Wooden Pallet or Wooden Case + PVC Film + Strap Banding + Waterproof Paper Winding;
tailored packaging to your specifications (printing of a logo or other material is permitted);
Additional customized packaging will be created upon request from the client;
What is the transportation method?
By air or sea; By international express: DHL, UPS, FEDEX, EMS, and our own express line;
What is the port of Shipment?
Port of shipment: Shanghai, Ningbo, or upon request.
Do you provide the sample? Free or Extes?
We can provide free samples for testing,but you need to bear the cost of shipping.
